Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
Email: workholding@hotmail.com

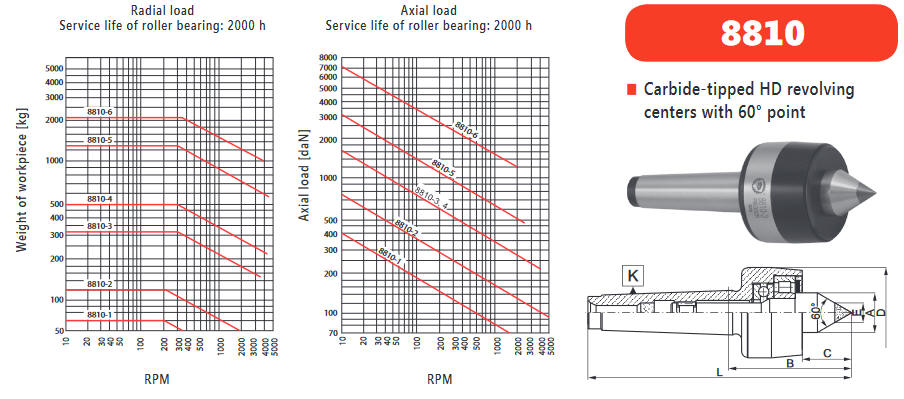

Bison Carbide Tipped HD Revolving Centers With 60 Point

Bison Carbide Tipped HD Revolving Centers With 60 Point

Morse
Taper
Max.
Work Part
Weight
RPM Precision Standard A
(in)
B
(in)
C
(in)
D
(in)
E
(in)
L
(in)
TIR Part
Number
TIR Part Number
1 132 5,000 .0002 7-553-101 .0003 7-553-001 .590 1.950 .670 1.500 .280 4.060
2 264 5,000 .0001 7-553-102 .0003 7-553-002 .710 2.220 .850 1.570 .280 4.740
3 704 4,000 .0001 7-553-103 .0003 7-553-003 .980 2.950 1.080 2.200 .430 6.140
4 4,100 3,000 .0001 7-553-104 .0003 7-553-004 1.260 3.350 1.320 2.520 .550 7.360
5 2,750 2,500 .0002 7-553-105 .0004 7-553-005 1.570 4.250 1.730 3.350 .710 9.330
6 4,840 2,000 .0002 7-553-106 .0004 7-553-006 1.460 5.960 2.520 5.120 .710 13.330

*All Dimensions Given In Inches
