Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
Email: workholding@hotmail.com

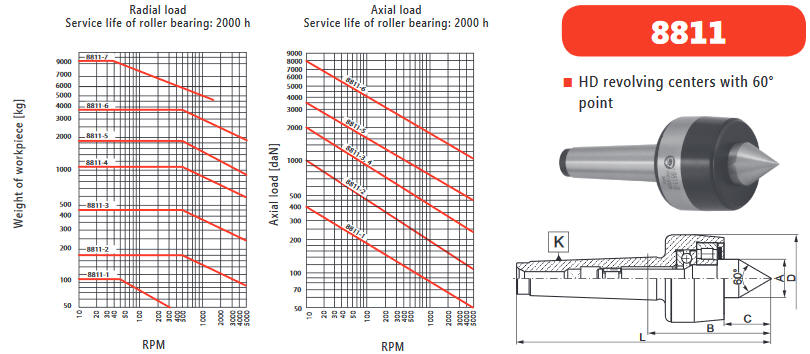

Standard Precision Heavy Duty Live Center  - 60 Point
Precision & Standard

Morse
Taper
Max.
Weight
(lbs)
RPM Precision Standard A B C D L
TIR
(in)
Part Number TIR
(in)
Part Number (in.) (in.) (in.) (in.) (in.)
1 220 5000 .0002" 7-565-101 .0003 7-565-001 .590 1.950 .670 1.500 4.060
2 396 5000 .0001 7-565-102 .0003 7-565-002 .710 2.220 .850 1.570 4.740
3 990 4000 .0001 7-565-103 .0003 7-565-003 .980 2.950 1.080 2.200 6.140
4 2,200 3000 .0001 7-565-004 .0003 7-565-004 1.260 3.350 1.320 2.520 7.360
5 4,180 2500 .0002 7-565-105 .0004 7-565-005 1.570 4.250 1.730 3.350 9.330
6 8,140 2000 .0002 7-565-106 .0004 7.565-006 2.460 5.960 2.520 5.120 13.130
7 20,900 1000 .0005 7-565-107 .0008 7-565-007 2.950 7.740 2.890 5.910 17.60
