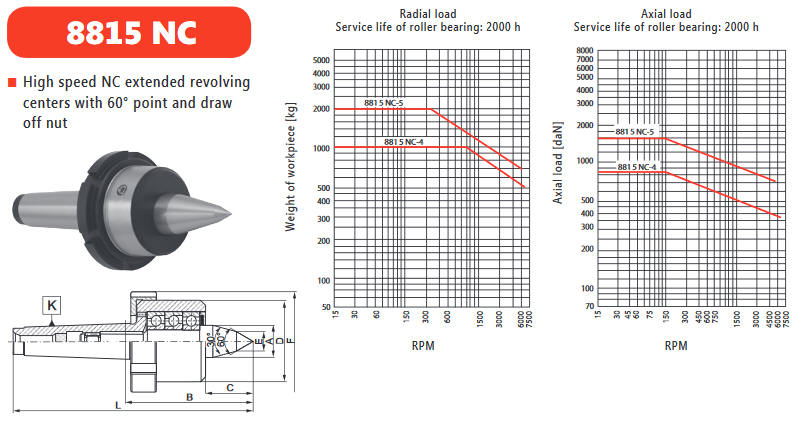

Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com



Morse
Taper		 Max.
Weight
(lbs)		 RPM Precision Standard A B C D E F L
TIR
(in)		 Part Number TIR
(in)		 Part Number (in.) (in.) (in.) (in.) (in.) (in.) (in.)
4 2200 7000 .0002" 7-569-004 .0004 7-569-0040 1.10 4.670 1.930 2.760 .550 3.230 8.700
5 4400 6000 .0002 7-556-005 .0004 7-569-0050 1.157 5.930 2.660 3.740 .630 4.330 11.020
