Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

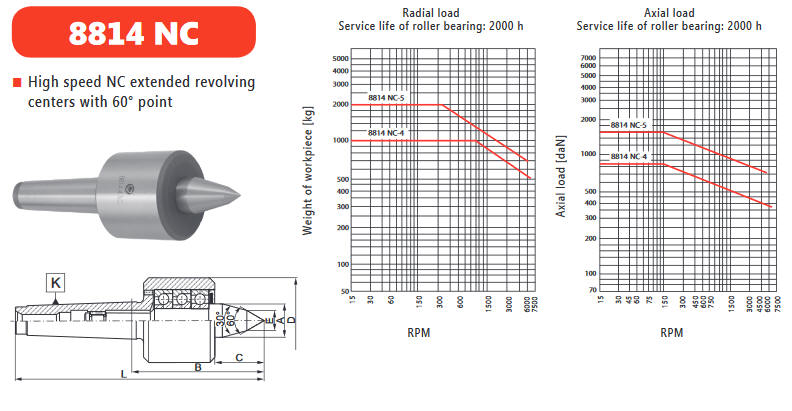

Bison High Speed NC Revolving Centers

Morse
Taper		 Max.
Work Part
Weight		 RPM Precision Standard A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)		 L
(in)
TIR Part
Number		 TIR Part Number
4 2,200 7,000 .0002 7-566-004 .0004 7-566-0040 1.100 4.670 1.930 2.760 .550 8.700
5 4,400 6,000 .0002 7-566-005 .0004 7-566-0050 1.570 5.930 2.660 3.740 .630 11.02
