Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

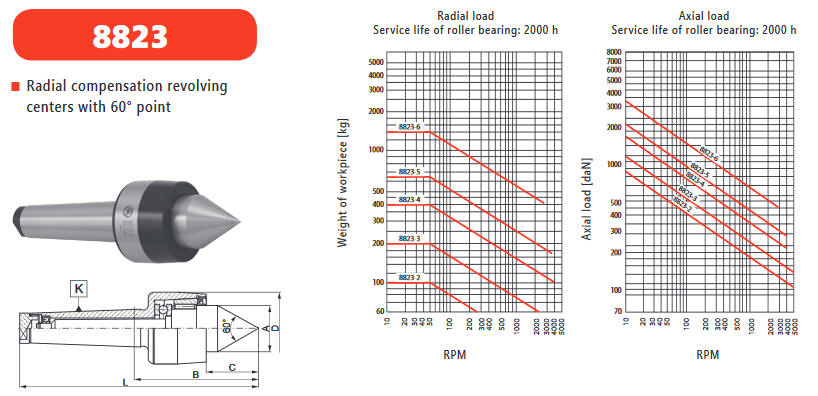

Bison Radial Compensation Live Centers Wit 60° Point

Morse
Taper		 Max.
Work
Part
Weight		 RPM Precision Standard A
(in)		 B
(in)		 C
(in)		 D
(in)		 L
(in)
TIR
(in)		 Part
Number		 TIR
(in)		 Part
 Number
2 220 8000 .0002 7-567-002 .0002 7-567-0020 .940 2.870 1.040 1.730 5.410
3 440 6000 .0001 7-567-003 .0002 7-567-0030 1.100 3.350 1.280 1.890 6.540
4 880 45000 .0001 7-567-004 .0002 7-567-0040 1.500 3.720 1.710 2.360 71740
5 1430 4000 .0001 7-567-005 .0002 7-567-0050 1.970 4.590 2.190 2.950 9.690
6 3080 3000 .0001 7-567-006 .0003 7-567-0060 2.380 5.310 2.460 3.540 12.480
