Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

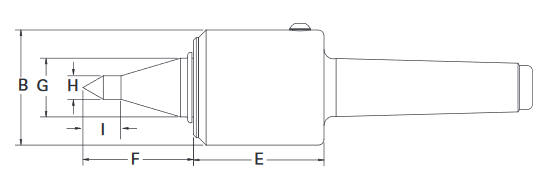

Royal High SPEED Precision Quad Bearing Live Centers - CNC Metal Point
With Oil Fill Screw




Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 H
(inches)		 I
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
3 1.70 2.12 1.75 .88 .38 .63 12000 180 650 10683
4 2.45 2.78 2.35 .125 .50 .81 12000 525 1,380 10684
5 2.45 2.78 2.35 1.25 .50 .81 12000 525 1,380 10685

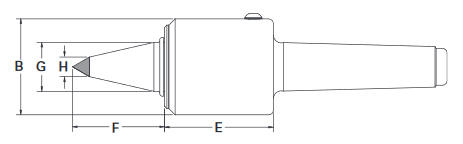

Royal High SPEED Precision Carbide Tipped Quad Bearing Live Centers - CNC Carbide Tipped Point
With Oil Fill Screw

Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 H
(inches)		 I
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
3 1.70 2.12 1.75 .88 .38 .63 12000 180 650 10693
4 2.45 2.78 2.35 .125 .50 .81 12000 525 1,380 10694
5 2.45 2.78 2.35 1.25 .50 .81 12000 525 1,380 10695
