Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

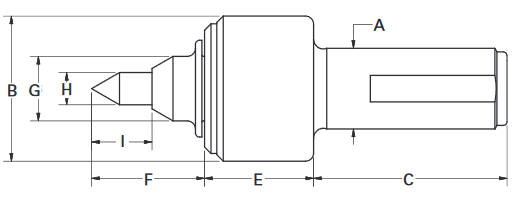

Royal Spring Loaded Straight Shank Live Centers


Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 1.70 2.12 1.07 .88 6000 885 1,270 10412
3 1.70 2.12 1.07 .88 6000 885 1,270 10413
4 2.45 2.78 1.47 1.25 5000 2,240 2,150 10414
5 2.45 2.78 1.47 1.25 5000 2,240 2,150 10415
5 HD 3.82 3.89 2.31 2.00 3000 5,240 5,300 10445
6 HD 3.82 3.89 2.31 2.00 3000 5,240 5,300 10446
