Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

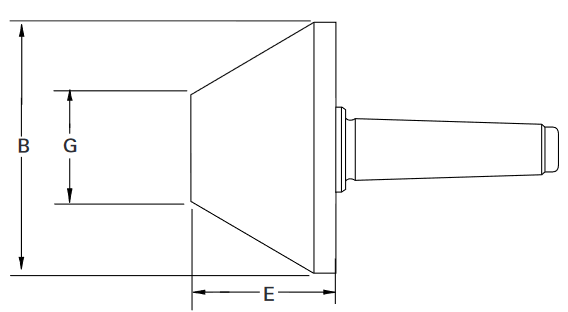

Royal Bull Head Live Centers



Morse
Taper		 B
(inches)		 E
(inches)		 G
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
3 3.15 2.52 1.00 5000 615 1,780 10902
4 4.15 3.01 1.25 4500 860 2,550 10904
5 4.15 3.01 1.25 4500 860 2,550 10905
5 5.15 3.17 2.00 4000 1,145 3,450 10907
5 6.15 3.60 2.50 3500 1,450 4,500 10909
