Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

Royal  Precision Changeable Point Live Centers






See Point Choices Below

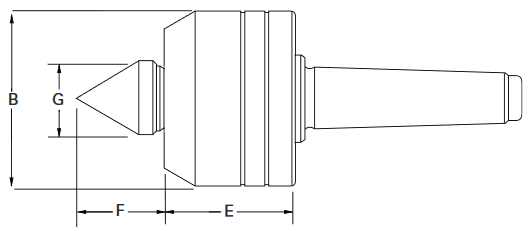

Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 Point
Threadds		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 2.00 1.85 1.13 .88 5/8-18 6000 390 960 10002
3 2.38 2.07 1.25 1.00 5/8-18 5000 500 1,140 10003
4 3.50 2.64 1.79 1.50 3/4-16 3500 1070 1,810 10004
5 3.50 2.64 1.79 1.50 3/4-16 3500 1070 1,810 10005

InterChangeable Points
