Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

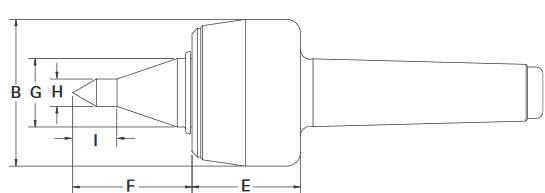

Royal Heady Duty Spindle Type Live Centers - CNC Point



Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 H
(inches)		 I
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 1.75 1.47 1.35 .88 .38 .63 6000 375 2,360 10212
3 2.33 1.75 1.86 1.00 .38 .63 6000 740 3,900 10213
4 2.68 1.98 2.18 1.25 .50 .81 4500 1,120 4,050 10214

5

 3.45 2.81 2.58 1.50 .50 .81 3500 1,931 5,700 10215

6

 4.00 3.15 3.00 2.00 .75 1.28 3500 2,420 6,000 10216
