Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

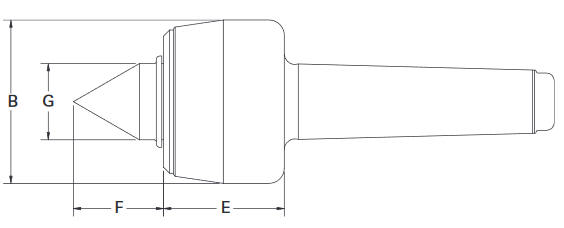

Royal Heavy Duty Spindle Type Precision Live Centers - Standard Point


Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 1.75 1.47 1.01 .88 6000 725 2,360 10102
3 2.33 1.75 1.22 1.00 5000 970 3,900 10103
4 2.68 1.98 1.48 1.25 4500 1720 4,050 10104
5 3.45 2.81 1.84 1.50 3500 1260 5,700 10105
6 4.00 3.15 2.31 2.00 3500 4080 6,000 10106
