Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

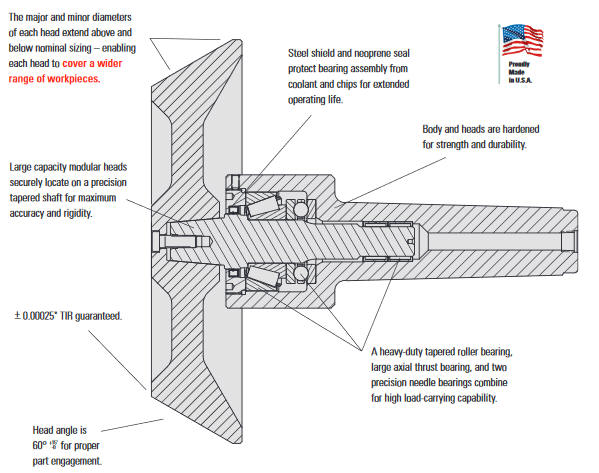

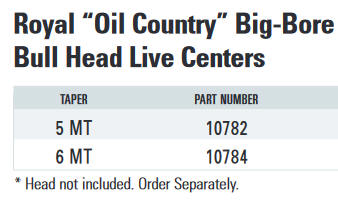

Royal  Precision Oil Country Modular Bull Head Live Centers

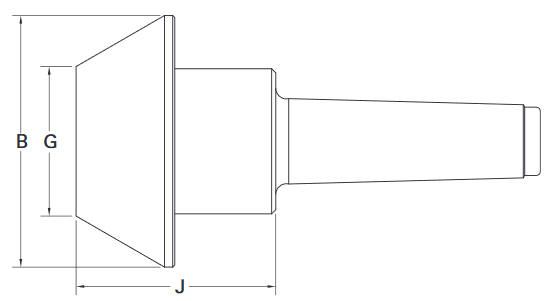

Modular Heads


Morse
Taper		 B
(inches)		 G
(inches)		 J
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
5 4.62 1.63 5.31 2050 4500 2650 10791
5 7.37 4.38 4.59 1300 4500 2650 10792
5 10.12 7.13 4.59 950 4500 2650 10793
5 12.87 9.88 4.59 750 4500 2650 10794
5 15.62 12.63 4.59 600 4500 2650 10795
6 4.62 1.63 6.57 2050 11000 3500 10791
6 7.37 4.38 5.85 1300 11000 3500 10792
6 10.12 7.13 5385 950 11000 3500 10793
6 12.87 9.88 5.85 750 11000 3500 10794
6 15.62 12.63 5.85 600 11000 3500 10795
