Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

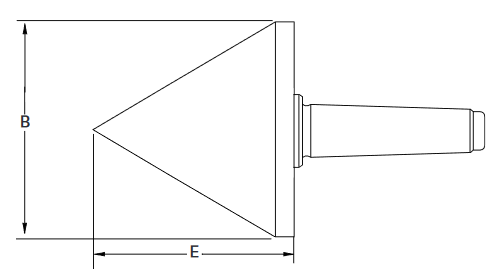

Royal Precision Pipe Head Live Centers



Morse
Taper		 B
(inches)		 E
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
3 3.15 3.39 5000 475 1780 10702
4 4.15 4.10 4500 630 2550 10704
5 4.15 4.10 4500 630 2550 10705
