Findcenters.com

Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

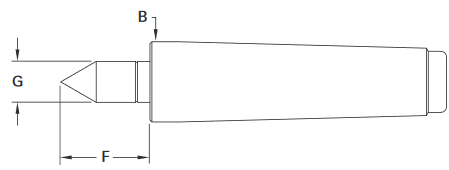

Royal Spring Type Live Centers



Morse
Taper		 B
(inches)		 F
(inches)		 G
(inches)		 Spring
Travel
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 .700 .88 .39 .11 5000 540 150 10522
3 .938 1.16 .55 .14 5000 940 315 10523
4 1.231 1.38 .63 .18 4500 1,400 435 10524
5 1.748 2.00 1.10 .19 4500 2,340 785 10525



Royal Spring Type Live Centers  - Straight Shank Models
Morse
Taper		 B
(inches)		 F
(inches)		 G
(inches)		 Spring
Travel
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
1" Dia. 1.00 1.16 .55 .14 5000 940 315 10526
1 1/4" Dia 1.25 1.38 .63 .18 4500 1,400 435 10527
