Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

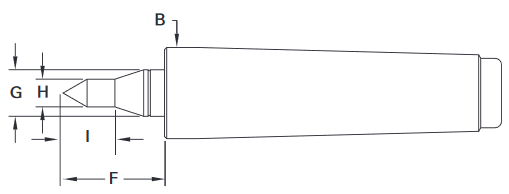

Royal Spring Type Precision Live Centers - CNC Point





Morse
Taper		 B
(inches)		 F
(inches)		 G
(inches)		 H
(inches)		 I
(inches)		 Spring
Travel
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
2 .700 .39 .88 .19 .35 .11 5000 150 150 10532
3 .938 .55 .88 .25 .47 .14 5000 260 315 10533
4 1.38 .63 1.25 .38 .70 .18 4500 580 435 10534
5 2.00 1.10 1.25 .50 .93 .19 4500 1,050 785 10535
