Royal Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

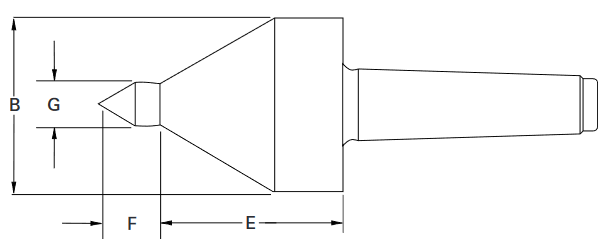

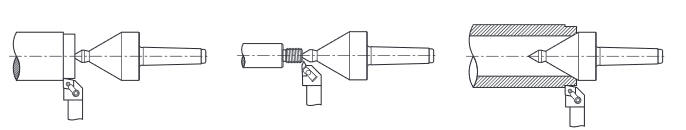

Royal Versa-Turn Live Centers





Morse
Taper		 B
(inches)		 E
(inches)		 F
(inches)		 G
(inches)		 RPM
Max.		 Work Piece
Max. Weight
(lbs.)		 Load
Thrust Max.
(lbs)		 Part
Number
3 2.13 2.20 .74 .50 5000 330 2,160 10832
3 HD 2.50 2.60 .93 .63 4000 685 5,000 10833
4 2.50 2.60 .93 .63 4000 685 5,000 10834
4 HD 3.38 3.15 1.12 .75 3500 1,165 5,700 10835
5 3.38 3.15 1.12 .75 3500 1,165 5,700 10836
