Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

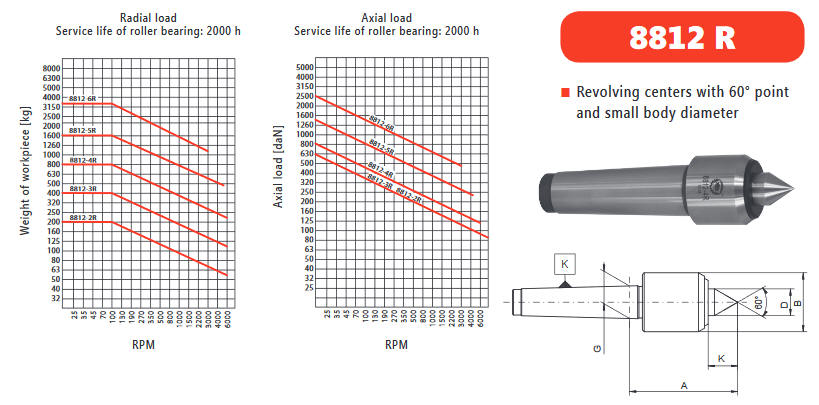

Bison Small Body Live Centers With 60° Point

Morse
Taper		 Max.
Work
Part weight		 RPM TIR Part
Number		 A
(in)		 B
(in)		 D
(in)		 G
(in)		 K
(in)
2 440 7000 .0002 7-563-002 2.440 1.260 .590 .700 .710
3 880 7000 .0002 7-563-003 2.440 1.340 .590 .940 .710
4 1760 6300 .0002 7-563-004 2.970 1.650 .790 1.230 .980
5 3520 4300 .0004 7-563-005 4.090 2.280 1.180 1.750 1.340
6 7700 3000 .0008 7-563-006 5.630 3.150 1.650 2.490 1.930
