Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for more Information

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

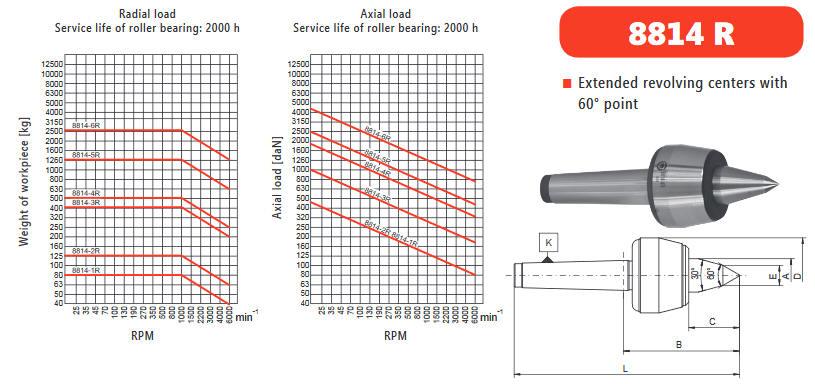

Bison Extended Revolving Live Centers With 60° Point




Morse
Taper		 Max.
Work Part
Weight		 RPM TIR Part
Number		 A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)		 L
(in)
1 176 7000 .0004 7-560-001 .590 2.620 .910 1.420 .350 4.720
2 308 7000 .0002 7-560-002 .790 2.930 1.320 1.770 .390 5.450
3 880 5000 .0002 7-560-003 .980 3.620 1.710 2.360 .470 6.810
4 1100 3800 .0002 7-560-004 1.260 4.470 2.050 2.760 .550 8.500
5 2640 3000 .0002 7-560-005 1.570 5.680 2.570 3.540 .630 10.740
6 5500 2600 .0004 7-560-006 1.970 6.710 3.050 4.130 .710 13.880
