Bison Precision Revolving Centers

*  Hardened And Ground Bodies
*  High Runout Accuracy and Concentricity
*  Rotation Speeds To 7,000 RPM
*  Max. Workpiece Weight Up To 11,000 Pounds
*  Bearing Life Up To 2,000 Operating Hours

Call or Email for Discount Pricing and Information.

Phone:  (888) 869-2424
 Email: workholding@hotmail.com

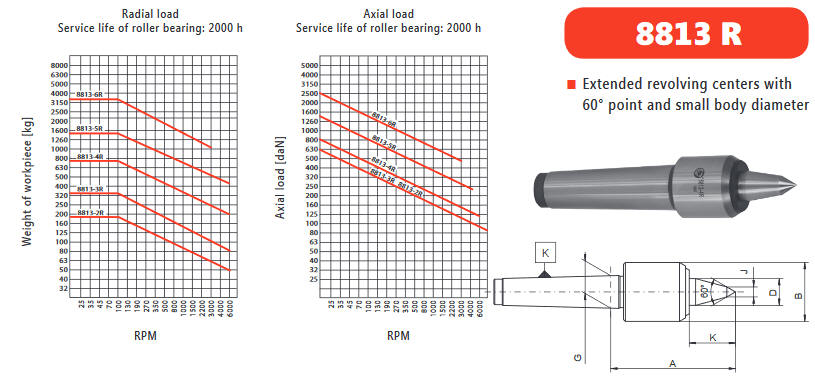

Bison Small Body Live Centers With Extended Point

Morse
Taper		 Max.
Work
Part
Weight		 RPM TIR Part
Number		 A B D G K J
2 374 7000 .0003 7-562-002 2.870 1.260 .590 .700 1.140 .390
3 748 7000 .0003 7-562-003 2.910 1.340 .590 .940 1.180 .430
4 1540 6300 .0003 7-562-004 3.480 1.650 .790 1.230 1.500 .510
5 3080 4300 .0004 7-562-005 4.690 2.280 1.180 1.750 1.930 .550
6 6600 3000 .0008 7-562-006 6.460 3.150 1.650 2.490 2.760 .710
